Boiler Specification:

• Boiler Material, Boiler Length, Boiler Diameter, Boiler plate thickness
• Furnace Dimensions, Length, Diameter, thickness
• Refractory layers, dimensions and material

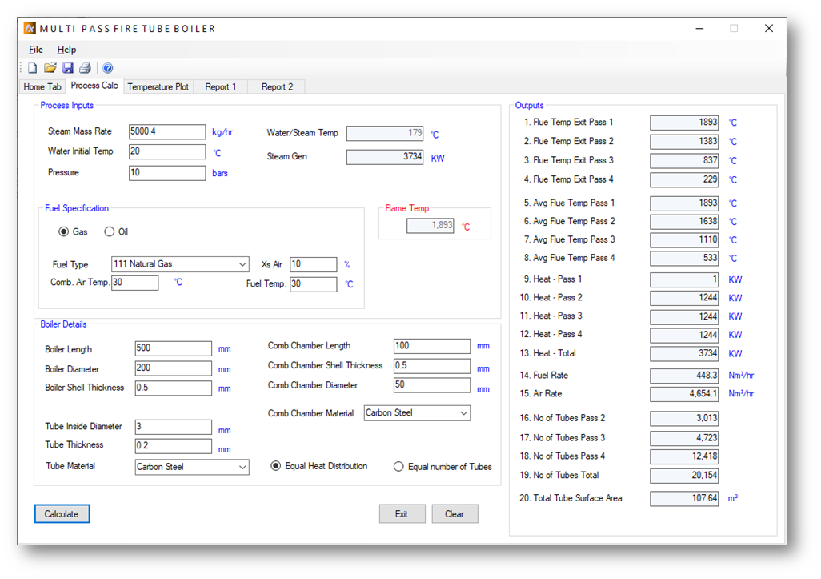

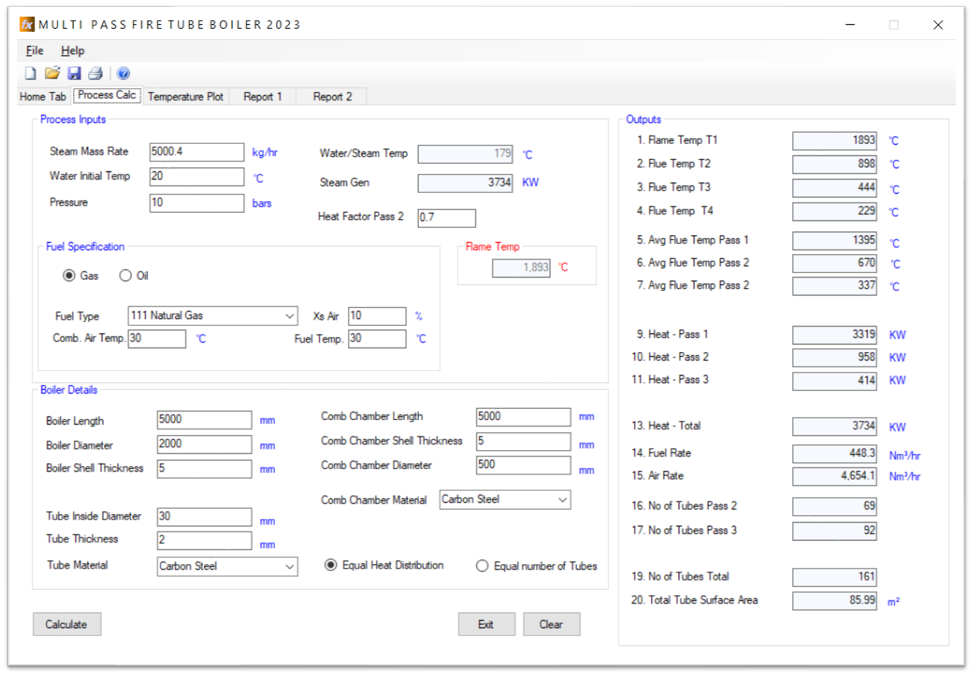

Process Data Specification:

• Steam Mass Rate
• Water Initial Temperature
• Steam Pressure

Fuel Data Specification:

• Fuel Specification
• Fuel Composition Percentage
• Heating Value
• A/F Ratio
• Combustion Air Temperature
• Excess Air

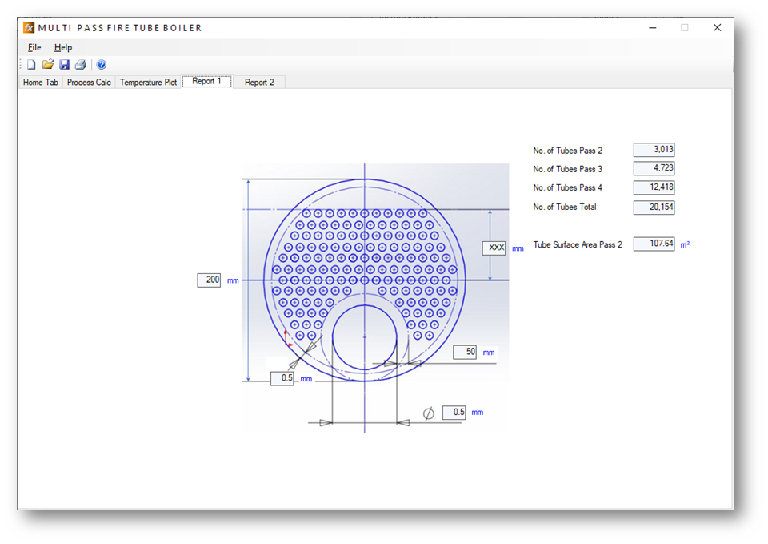

Tube Material, Dimension and Configuration

• Tube Material
• Tube Section Length
• Number of Tubes in Rows
• Number of Rows
• Tube Outer Diameter
• Tube Wall Thickness

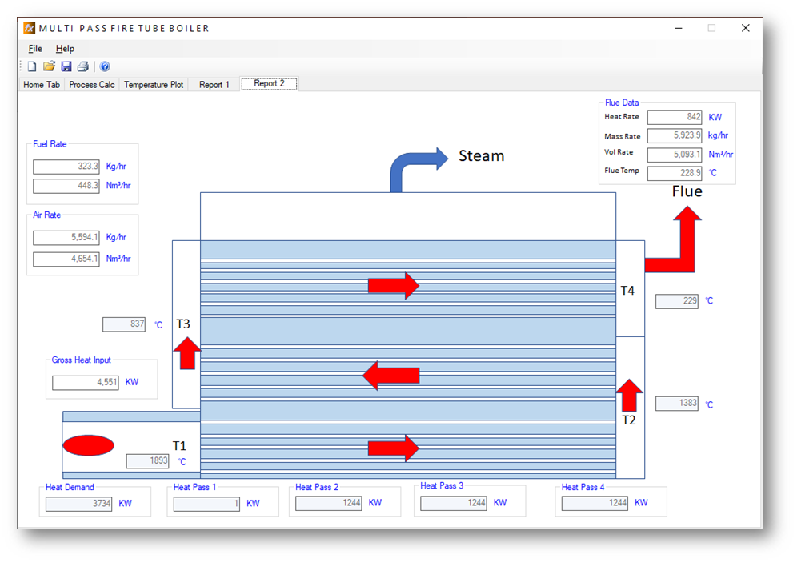

Heat Balance

• Heat Transfer Inside the Boiler
• Fuel Heat

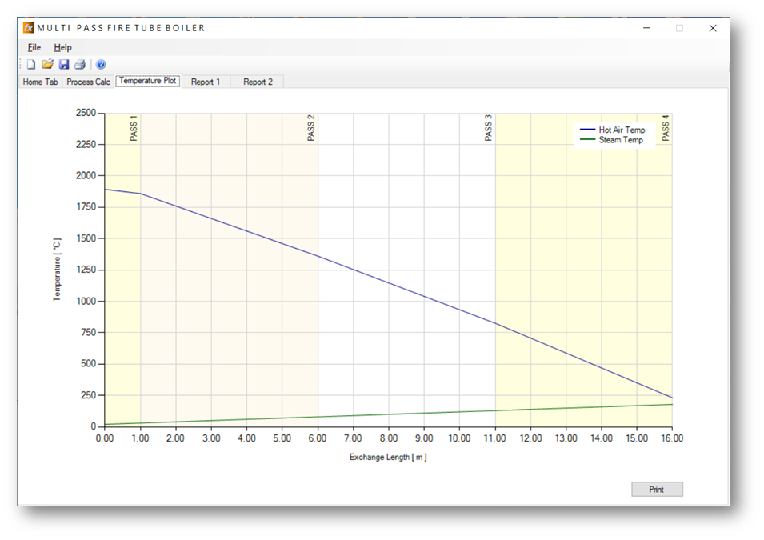

• Temperature drop at each pass
• Heat Loss from the furnace Wall

Summary

• Steam Rate, Steam Pressure
• Specific Fuel Usuage
• Adiabatic Combustion Temperature
• Flue Gas Exit Temperature
• Combustion Air Rate
• Released Flue Gas Rate
• CO2 Mass Rate in Flue Gas
• Allowable Circumferential and Radial Pressure
