Furnace Analysis Furnace Simulation Furnace Design

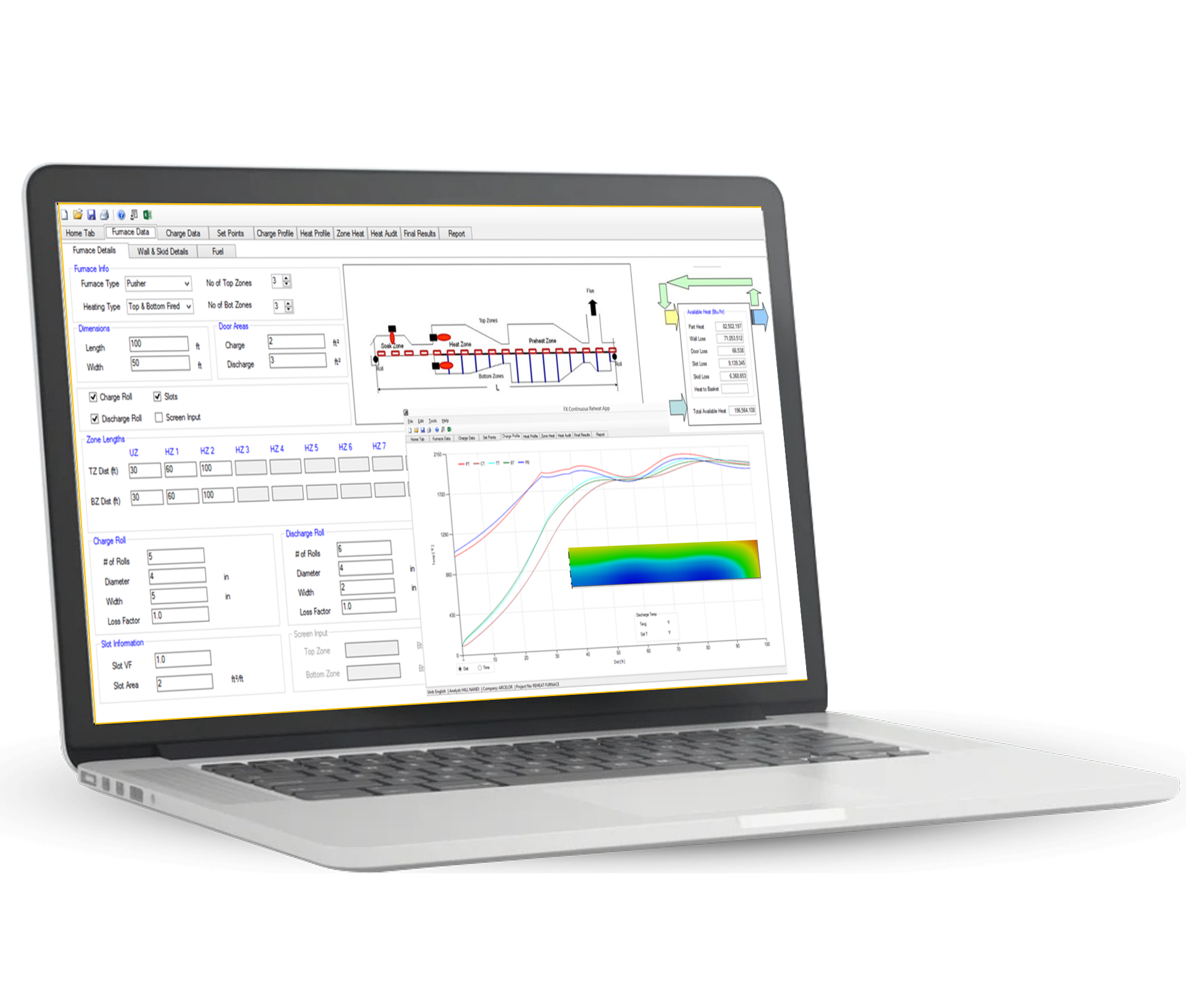

FurnXpert is a furnace software that simplifies the job of furnace sizing, furnace setup and thermal simulation inside industrial furnaces. The software has been developed specifically for furnace designers, furnace manufacturers, metallurgists, and process engineers to simulate heat treatment process with a virtual furnace.

Software to Size, Simulate and
Setup Furnaces

The simulation entails determination of optimum settings e.g., Temperature, Process Gas Flow, Speed, Time @ Temperature, and Heating Cycles. In addition, the software is used for heat losses in each heating stages, stage/zone wise thermal loading, and fuel/air demand in case of a combustion system.

For Furnace designers, it's a useful tool to size and design new furnaces. For furnace operators, it provides the ability to know what goes on inside an industrial furnace and how it affects the products during heat treating process.

FurnXpert will save thousands of dollars to the furnace operators in the form of Production Increase, Energy Savings, and Scrap Reduction.

Imagine no more trial runs for heat treating new parts!! Use FurnXpert to Size Furnaces, Setup Furnaces and Simulate Thermal Process inside furnaces.

Tool to Analyze and
Design New Furnaces

FurnXpert can be used for initial furnace sizing as well as detailed thermal modeling of Industrial Furnaces. The information needed to begin a new thermal analysis of a furnace could be as little as time temperature profile and some basic information of the parts to be processed. The software then calculates part temperature during heating and cooling cycles. It also performs Heat Loss Calculations to determine power input, energy consumption and operating cost for a typical run. With this information maximum production rate and optimum operating parameters can be determined.

Benefits of Using FurnXpert Software

There are several tangible and intangible benefits of using FurnXpert Software. It could be as obvious as knowing how parts with certain metallurgical properties, shapes, dimensions and placement are heated inside a furnace or figuring out how to optimally heat materials inside a furnace to save energy.

  • 01
    Minimizes furnace design time
  • 02
    Reduces the requirements to test runs
  • 03
    Offers platform to improved design accuracy
  • 04
    Enables viewing heat-treating process virtually
  • 05
    Bridges the gap between the
    furnace suppliers and furnace users
  • 06
    Equips furnace manufacturers
    and Heat-Treaters with a sales tool
  • 07
    Offers platform to improved design accuracy
